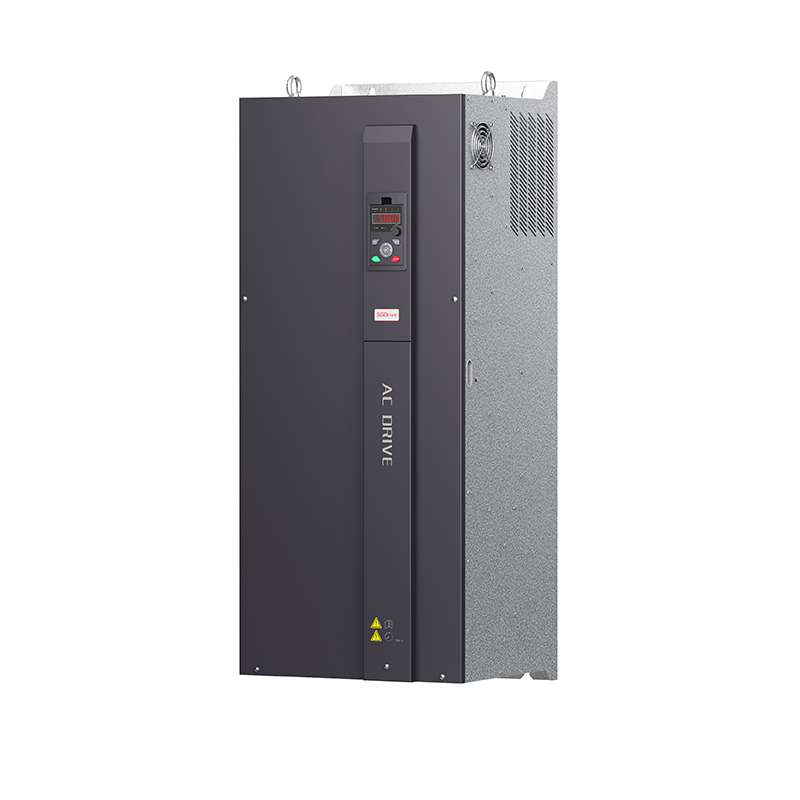

SG600 45-75kW
solar pump drive model description
The user can learn the specification from the nameplate. SG600 -2K2G- 4T ① ② ③
|
Mark |
Description |
Contents |
|
① |
Series models |
SG320,SG350,old series SG600,new series |
|
② |
Drive power |
7K5G stand for 7.5kw, submersible pump type 1K5G stands for 1.5kw, submersible pumps type |
|
③ |
Voltage specification |
1: = 80 to 350V DC or 110 to 220V AC input 2: = 230 to 450V DC or 200 to 240V AC input 4: = 350 to 900V DC or 380 to 480V AC input S: 1 phase input T: three phase input |
3.5.Solar pump drive technical specification
|
Recommended MPPT voltage range |
230~450VDC for 220VAC/240V pumps with 0.75Kw to 4kw 350~800VDC, for 380VAC pumps with1.5kw to 450kw |
|
Recommended input voltage |
310Vmp DC for 220V AC pumps, 540Vmp DC for 380V AC pumps |
|
Motor type |
Control for permanent magnet synchronous motor and asynchronous motor pumps |
|
Maximum DC power input |
1. 450VDC for 220AC output 2. 800VDC or 900VDC for 380V AC output |
|
Rated output voltage |
1 phase, 220V. 3 phase, 220V/380V/440V |
|
Output frequency range |
0~400Hz |
|
MPPT efficiency |
99%, |
|
Ambient temperature range |
|
|
Solar pump control special performance |
MPPT ( maximum power point tracking), CVT (constant voltage tracking), auto/manual operation, dry run protection, low stop frequency protection, minimum power input, motor maximum current protection, flow calculating, energy generated calculating and water tank level detected, etc |
|
Protection function |
Stall protection, phase loss protection, phase short circuit protection , ground to phase short circuit protection , input and output short circuit protection, over-temperature protection, etc |
|
Protection degree |
IP20, Air force cooling |
|
Running mode |
MPPT or CVT |
|
Altitude |
Below 1000m; above 1000m, derated 1% for every additional 100m. |
|
Standard AC input backup circuit |
CE, Design based on vector control drive, more specification please refer to vector control drive operation manual |
3.6. Models and specification
|
SN |
Models |
Rate current (A) |
DC input range (VDC) |
Output voltage (VAC) |
Applicable for pumps (KW) |
Recommen ded VOC (VDC) |
shape and size |
|
1 |
SG600-0K7G-2S |
4.0A |
230 to 450 |
220 to 240 |
0.75KW |
360 to 400 |
Fig.A |
|
2 |
SG600-1K5G-2S |
7.5A |
230 to 450 |
220 to 240 |
1.5KW |
360 to 400 |
Fig.A |
|
3 |
SG600-2K2G-2S |
10A |
230 to 450 |
220 to 240 |
2.2KW |
360 to 400 |
Fig.A |
|
4 |
SG600-3K0G-2S |
13.5A |
230 to 450 |
220 to 240 |
3.0KW |
360 to 400 |
Fig.B |
|
5 |
SG600-4K0G-2S |
16A |
230 to 450 |
220 to 240 |
4.0KW |
360 to 400 |
Fig.B |
|
6 |
SG600-0K7GB-4T |
2.5A |
350 to 800 |
380 to 440 |
0.75KW |
650 to700 |
Fig.A |
|
7 |
SG600-1K5GB-4T |
3.7A |
350 to 800 |
380 to 440 |
1.5KW |
650 to700 |
Fig.A |
|
8 |
SG600-2K2GB-4T |
5.0A |
350 to 800 |
380 to 440 |
2.2KW |
650 to700 |
Fig.A |
|
9 |
SG600-4K0GB-4T |
10A |
350 to 800 |
380 to 440 |
4.0KW |
650 to700 |
Fig.A |
|
10 |
SG600-5K5GB-4T |
13A |
350 to 800 |
380 to 440 |
5.5KW |
650 to700 |
Fig.B |
|
11 |
SG600-7K5GB-4T |
17A |
350 to 800 |
380 to440 |
7.5KW |
650 to700 |
Fig.B |
|
12 |
SG600-011GB-4T |
25A |
350 to 800 |
380 to 440 |
11KW |
650 to700 |
Fig.C |
|
13 |
SG600-015GB-4T |
33A |
350 to 800 |
380 to 440 |
15KW |
650 to700 |
Fig.C |
|
14 |
SG600-018G-4T |
38A |
350 to 800 |
380 to 440 |
18.5KW |
650 to700 |
Fig.C |
|
15 |
SG600-022G-4T |
45A |
350 to 800 |
380 to 440 |
22KW |
650 to700 |
Fig.C |
|
16 |
SG600-030G-4T |
60A |
350 to 800 |
380 to 440 |
30KW |
650 to700 |
Fig.C |
|
17 |
SG600-037G-4T |
75A |
350 to 800 |
380 to 440 |
37KW |
650 to700 |
Fig.C |
|
18 |
SG600-045G-4T |
91A |
350 to 800 |
380 to 440 |
45KW |
650 to700 |
Fig.C |
|
19 |
SG600-055G-4T |
110A |
350 to 800 |
380 to 440 |
55KW |
650 to700 |
Fig.C |
|
20 |
SG600-075G-4T |
150A |
350 to 800 |
380 to 440 |
75KW |
650 to700 |
Fig.C |
|
21 |
SG600-090G-4T |
180A |
350 to 800 |
380 to 440 |
90KW |
650 to700 |
Fig.C |
|
22 |
SG600-110G-4T |
210A |
350 to 800 |
380 to 440 |
110KW |
650 to700 |
Fig.C |
|
23 |
SG600-132G-4T |
250A |
350 to 800 |
380 to 440 |
132KW |
650 to700 |
Fig.C |
|
VFD specifications and models |
Dimension ( mm ) |
Mounting holes size ( mm ) |
Mountin g holes (mm) |
Size |
Remark |
|||
|
W |
H |
D |
W1 |
H1 |
¢d |
Size |
Wiring |
|
|
1 PHASE 2S 220V |
||||||||
|
SG600-0K75G-2S |
86 |
187 |
152 |
68 |
176 |
5.5 |
S1 |
down in down out wall mounted |
|
SG600-1K5G-2S |
||||||||
|
SG600-2K2G-2S |
||||||||
|
SG600-3K0G-2S |
105 |
265 |
164 |
87 |
252 |
6 |
S2 |
down in down out wall mounted |
|
SG600-4K0G-2S |
||||||||
|
3 PHASE 4T 380V |
||||||||
|
SG600-0K75GB-4T |
86 |
187 |
152 |
68 |
176 |
5.5 |
S1 |
down in down out wall mounted |
|
SG600-1K5GB-4T |
||||||||
|
SG600-2K2GB-4T |
||||||||
|
SG600-4K0GB-4T |
||||||||
|
SG600-5K5GB-4T |
105 |
265 |
164 |
87 |
252 |
6 |
S2 |
down in down out wall mounted |
|
SG600-7K5GB-4T |
||||||||
|
SG600-011GB-4T |
150 |
333 |
216 |
100 |
314 |
5.5 |
S3 |
down in down out wall mounted |
|
SG600-015GB-4T |
||||||||
|
SG600-018G-4T |
180 |
383 |
228 |
120 |
363 |
6.5 |
S4 |
down in down out wall mounted |
|
SG600-022G-4T |
||||||||
|
SG600-030G-4T |
175 |
435 |
265 |
130 |
420 |
6.5 |
S5 |
down in down out book type |
|
SG600-037G-4T |
||||||||
|
SG600-045G-4T |
265 |
670 |
358 |
200 |
645 |
9 |
S6 |
up in down out book type |
|
SG600-055G-4T |
||||||||
|
SG600-075G-4T |
||||||||
|
SG600-090G-4T |
305 |
845 |
358 |
200 |
820 |
11 |
S7 |
up in down out book type |
|
SG600-110G-4T |
||||||||
|
SG600-132G-4T |
||||||||
| Specifications | ||
| POWER Input | Voltage and frequency | Single phase :220V 50/60Hz; Three phase: 220V 50/60Hz; Three phase 380V 50/60Hz |
| Allowed fluctuation range | voltage unbalance rate:<3%; Frequency:±5%; aberration rate: as IEC61800-2 required | |
| Switching impulse current | Lower than rated current | |
| Frequency drive efficiency | ≥96% | |
| POWER Output | Output voltage | Output under rated condition: 3 phase, 0~input voltage, deviation<5% |
| Output frequency range | 0~1500Hz | |
| Output frequency accuracy | Max frequency ±0.5% | |
| Overload capacity | G type: 150% rated current/1 min, 180% rated current/2s, 200% rated current/0.5s | |
| Power Level | Single phase 220V 50/60Hz | 0.75kW - 220kW |
| Three phase 220V 50/60Hz | 0.75kW - 220kW | |
| Three phase 380V 50/60Hz | 0.75kW - 1,120kW | |
| Three phase 690V 50/60Hz | 0.75kW - 1,250kW | |
| Main Control Performance | Motor type | Three-phase asynchronous motor; Permanent magnet synchronous motor (sine wave) |
| Control mode | V/F control, SVC, | |
| Carrier frequency | 1.0~16.0kHz | |
| Speed control range | SVC : rated load 1:200 | |
| Steady speed | SVC : ≤2% rated synchronized speed | |
| Starting torque | SVC : 150% rated torque at 0.5Hz | |
| Torque response | SVC :<20ms | |
| Frequency accuracy | Digital setting: max frequency×±0.01%; Analog setting: max frequency×±0.2% | |
| Frequency resolution | Digital setting: 0.01Hz; Analog setting: max frequency×0.05 | |
| Basic Functions | Torque control | Torque setting calculation, torque mode speed limit |
| DC braking capability | Starting frequency:0.00~50.00Hz; Braking time:0.0~60.0s; Braking current:0.0~150.0% rated | |
| Torque boost | Automatic torque boost 0.0%~100.0%; Manual torque boost 0.0%~30.0% | |
| V/F curve | Four modes: linear torque characteristic curve, self-set V/F curve, torque reduction characteristic curve (1.1 to 2.0 power), square V/F curve | |
| Acceleration/Deceler ation curve | 2 modes: linear Acceleration/Deceleration and S curve Acceleration/Deceleration. 4 sets of ACC/DEC, time unit 0.01s selectable, longest time: 650.00s | |
| Automatic voltage adjustment | When the voltage fluctuates, the output voltage is automatically maintained | |
| Automatic energy-saving operation | Automatically optimize output voltage according to load in V/F control mode to achieve energy-saving operation | |
| Rated output voltage | Using the power supply voltage compensation function, the rated voltage of the motor is 100%, which can be set within the range of 50 to 100% (the output cannot exceed the input voltage). | |
| Automatic current limit | Automatically limit the current during operation to prevent frequent over-current fault trips | |
| Voltage | While power supply voltage fluctuates, it can auto-keep constant output voltage | |
| Auto-limit current | Auto-limit the current while running to prevent over current break trouble | |
| Instant power off | Uninterrupted operation through bus voltage control during instantaneous power loss | |
| Standard functions | PID control, speed track, power off restart, jump frequency, upper/lower frequency limit control, program operation, multi- speed, RS485, analog output, frequency impulse output | |
| Frequency setting channels | Keyboard digital setting, Analog voltage/current terminal AI1, Analog voltage/current terminal AI2, Communication given and multi-channel terminal selection, Main and auxiliary channel combination, expansion card, supporting different modes switch. | |
| Feedback input channel | Voltage/Current Terminal AI1, Voltage/Current Terminal AI12, Communication given, Low-speed pulse input PUL, extension card | |
| Running command | Operation panel given, external terminal given, communication given, expansion card given | |
| Input command signal | Start, stop, FWD/REV, JOG, multi-step speed, free stop, reset, ACC/DEC time selection, frequency given channel selection, external fault alarm | |
| External output signal | 1 relay output, 1 collector output, 1 AO output: 0~10V output or 4~20mA output | |
| Protective Functions | Protective function | Overvoltage, under-voltage, current limit, over-current, overload, electric thermal relay, overheat, overvoltage stall, data protection, rapid speed protection, input/output phase failure protection. |
| Keyboard Display | LED display | Built-in keyboard: single line 5- digital tube display, monitor 1 drive status quantity |
| Status monitor | Output frequency, given frequency, output current, input voltage, output voltage, motor speed, PID feedback, PID given value, module temperature etc. monitor parameters | |
| Error alarm | Over-voltage, under-voltage, over-current, short circuit, phase failure, overload, overheat, overvoltage stall, current limit, or current fault health, historical fault record. | |
| Surroundings | Install place | The altitude is less than 1000 meters, and the derating is more than 1000 meters. The derating is 1% for every 100 meters. |
| Temperature and humidity | -10 ~ +50°C, derating can be used above 40 °C, the maximum temperature is 60 °C (no-load operation), 5%~95%RH(no condensation) | |
| Vibration | 5.9m/s2(0.6g) | |
| Storage temperature | -30~+60℃ | |
| Installation mode | Wall hanging | |
| Protection degree | IP20 | |
| Cooling method | Forced air cooling |
